Durable Heavy Duty Portable Air Compressor 12v Fast Chrome Steel For Off Road Car
Portable Off-Road DC12V Air Suspension Pump
► Description

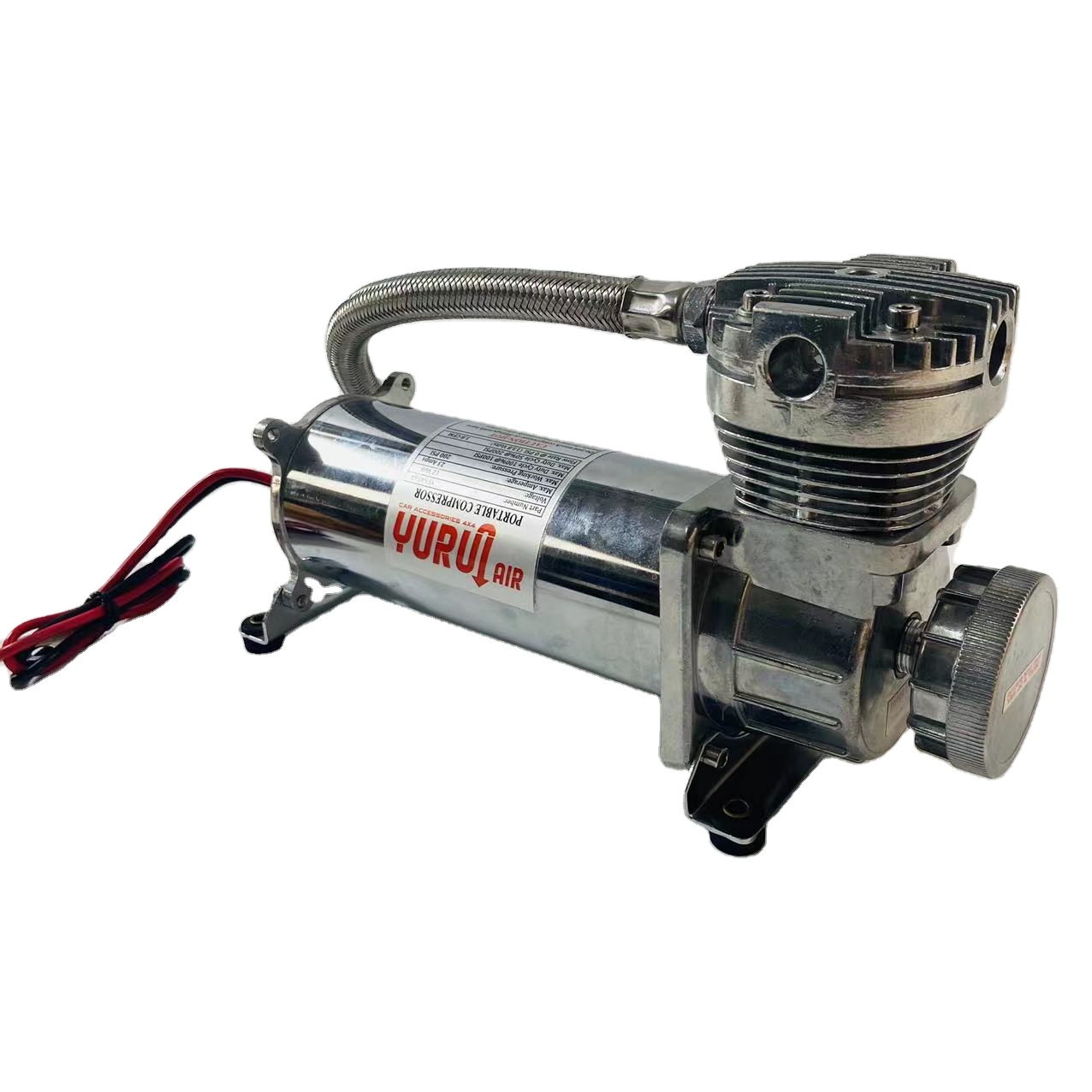

YF6456R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation.
It is commonly used with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It will automatically turn on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation. One thing needed to bring out is that this product is very popular in the USA and Brazil.
► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
► Why choose us?
1. We are the professional manufacturers with 15 years experience.
2. The boss is a 20-year experienced engineer to give the promise of great quality.
3. We listen. We listen every customer’s voice to meet the request.
4. We, every worker is passionate, hard-working and careful of the inspection in every step.
5. 24-hour available sales are standby to solve your questions.
► SPECIFICATION
1.8CFM 200PSI
• 12 Volt
• Duty Cycle: 100% @ 100 PSI
• Duty Cycle: 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• 12V Max. Amp Draw: 23 Amps
• 3/8"NPT Inlet port
• Net Weight: 11 lbs
11"Lx4"Wx6.55"H
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 | 200 |
| AMPS | 11 | 17 | 21 | 22 | 19 |
| CFM | 1.8 | 1.34 | 1.05 | 0.74 | 0.56 |
| LPM | 51 | 38 | 30 | 21 | 16 |
| BAR | 0 | 3 | 6 | 10 | 14 |
► RECOMMENDED TANK
TANK FILL DATA
2.5 Gallon Tank
0 to 200 psi 4 min 58 sec
150 to 200 psi 1 min 50 sec
5.0 Gallon Tank
0 to 200 psi 10 min 10 sec
150 to 200 psi 2 min 50 sec
♦ DUTY CYCLE REFERENCE CHART
